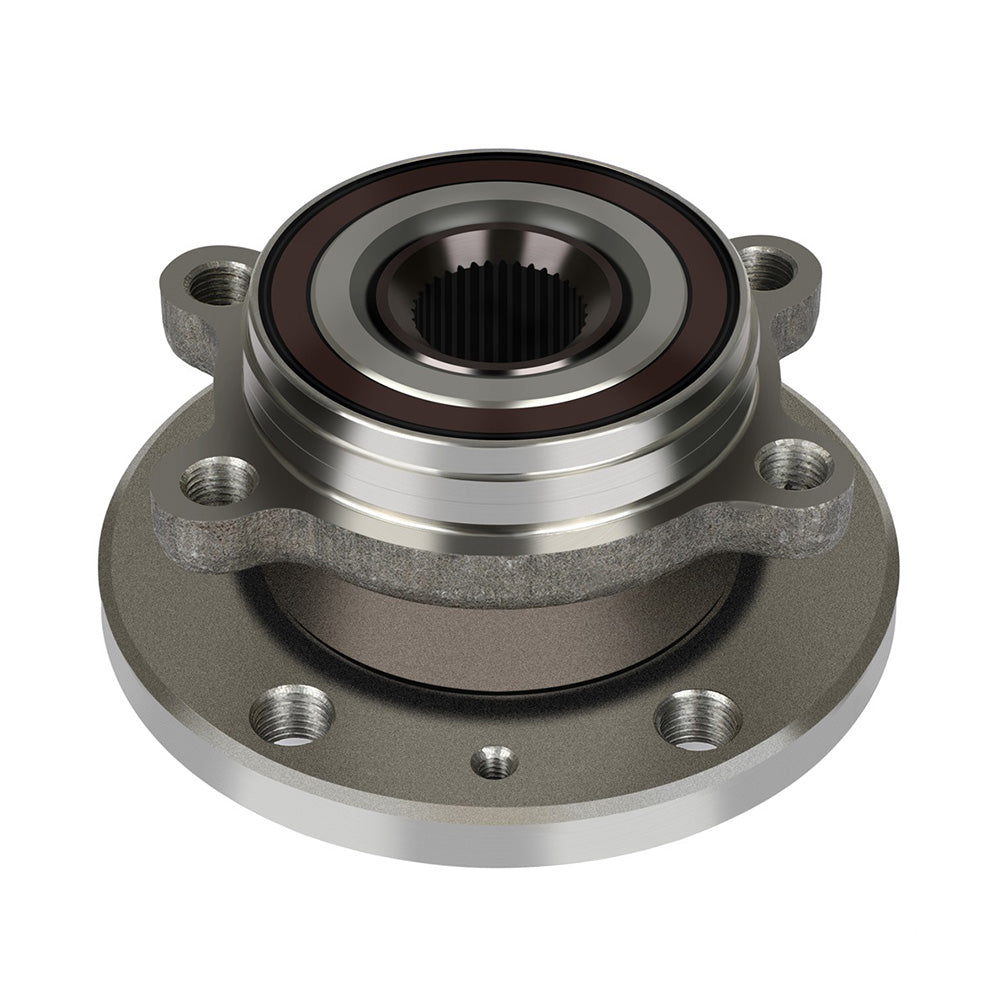

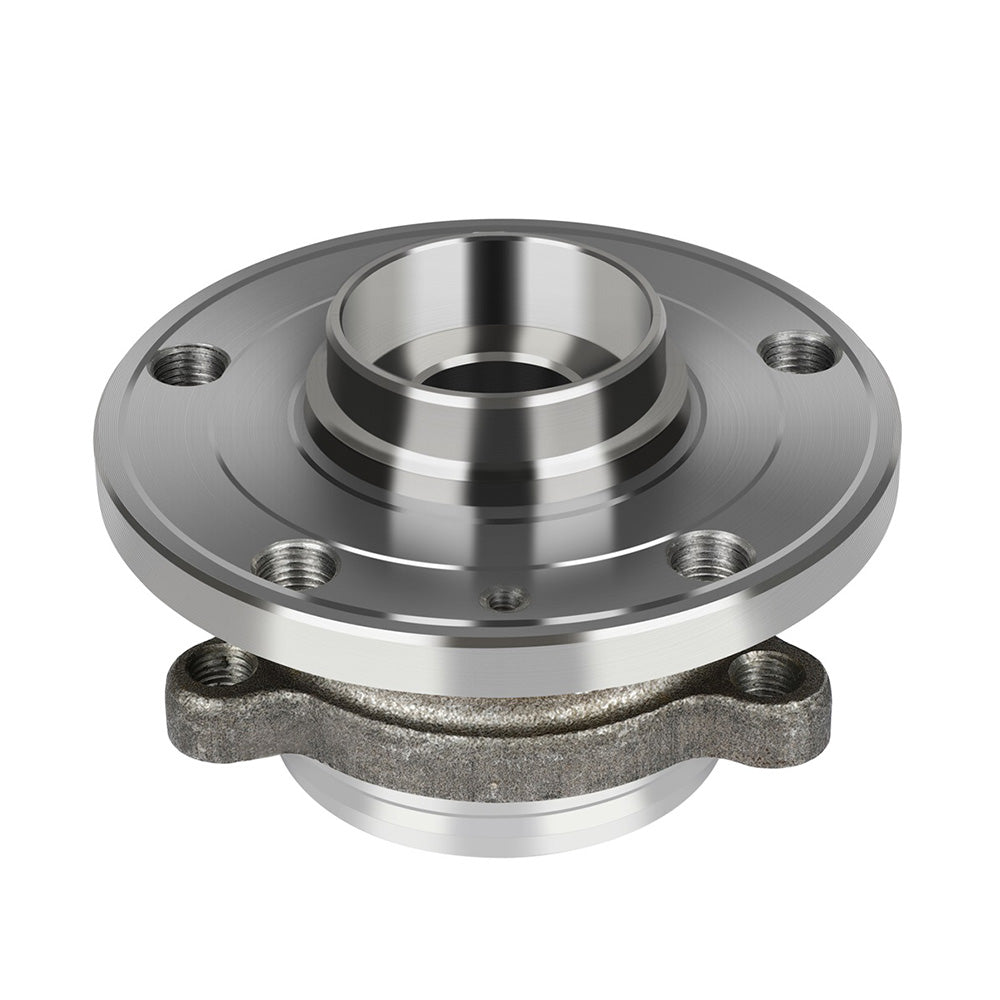

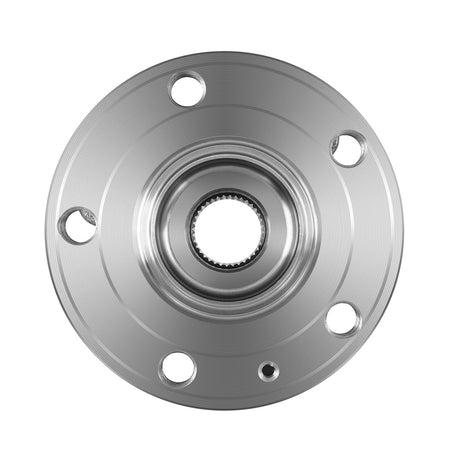

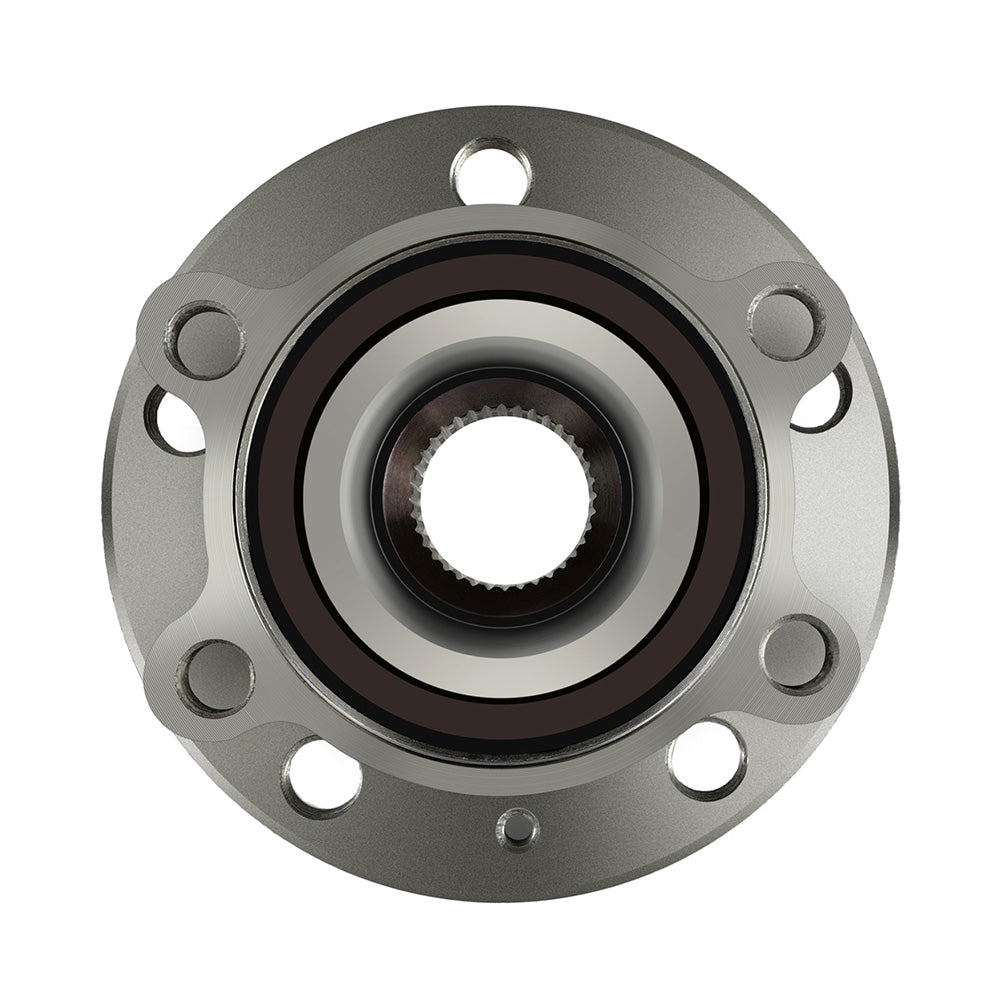

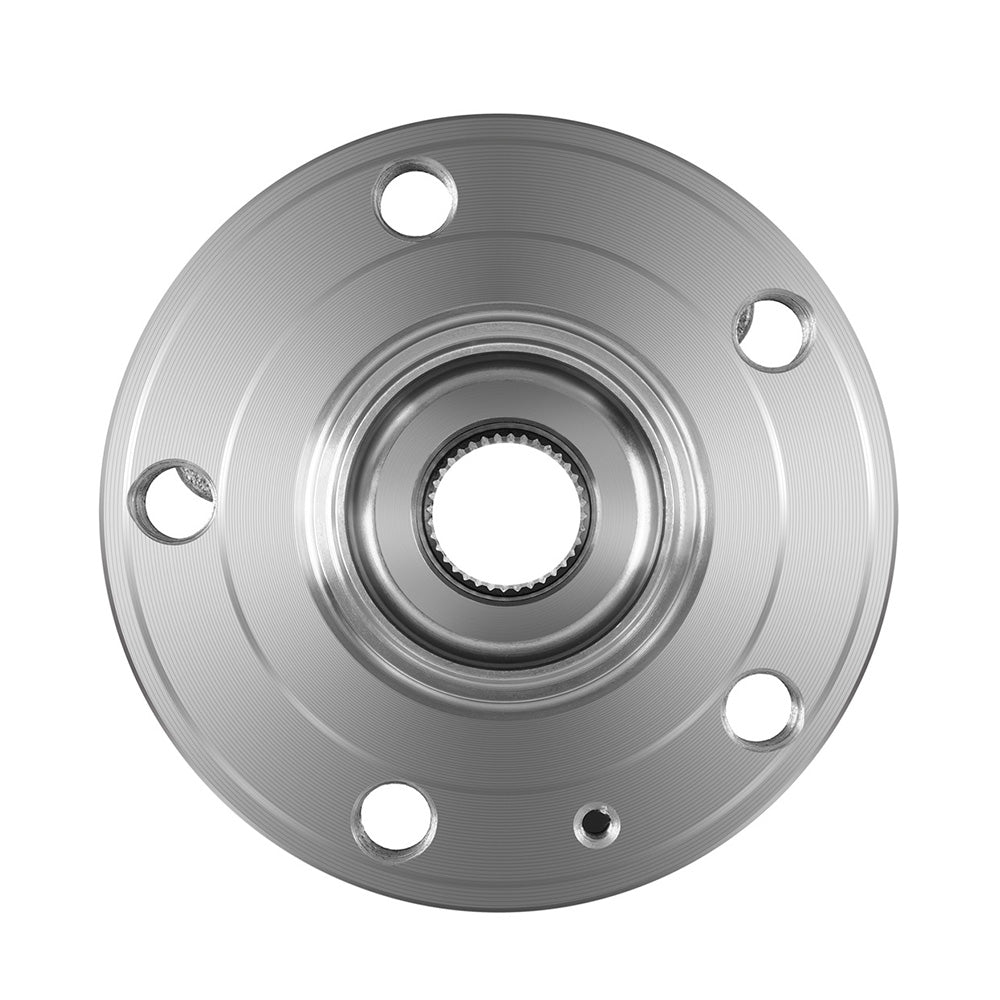

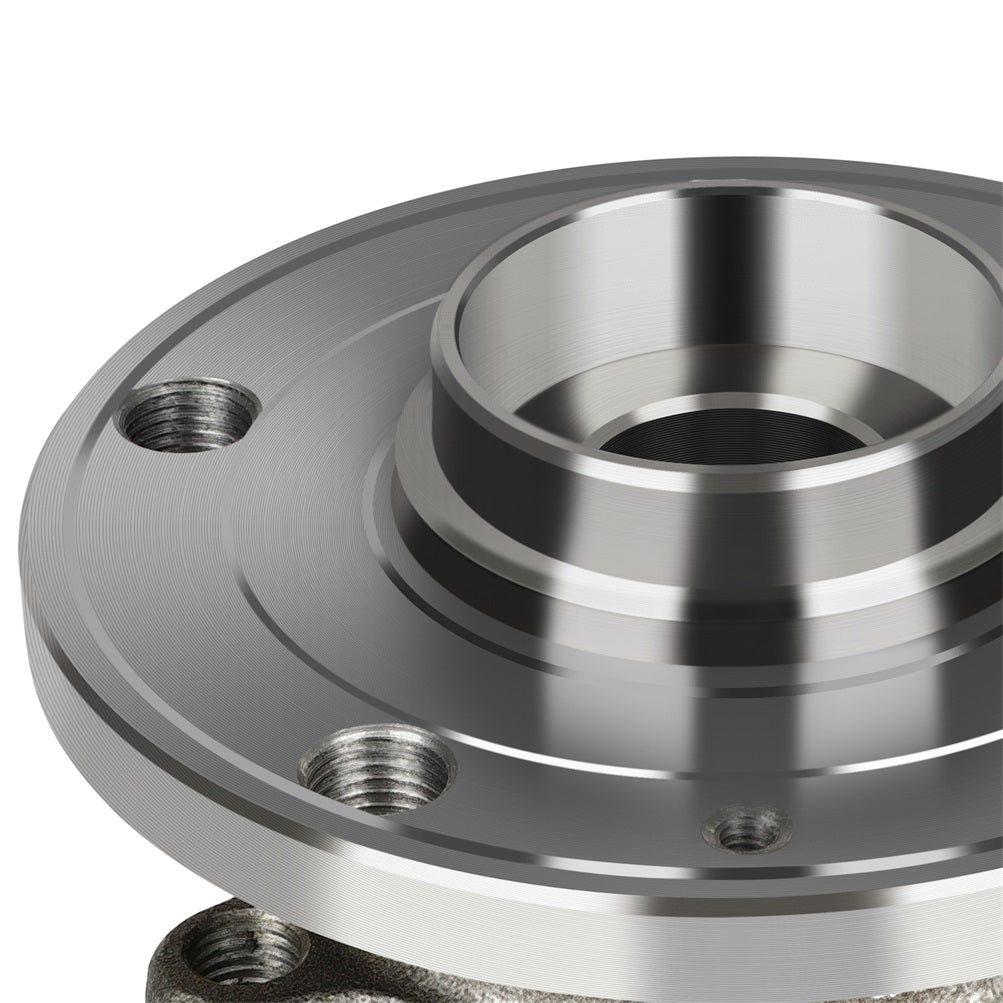

Wheel Hub & Bearing Assembly For 06-13 Audi A3 09-17 Volkswagen Tiguan

Fitment

• Audi | A3 | 2008~2013 | 2.0L
• Audi | A3 Quattro | 2006~2013 | 2.0L/3.2L
• Audi | Q3 | 2015~2018 | 2.0L
• Audi | Q3 Quattro | 2015~2018 | 2.0L
• Audi | TT | 2008~2009 | 2.0L
• Audi | TT Quattro | 2008~2015 | 2.0L/3.2L
• Audi | TT RS Quattro | 2012~2013 | 2.5L
• Audi | TTS Quattro | 2012~2013/2015 | 2.0L
• Volkswagen | Beetle | 2012~2019 | 1.8L/2.0L/2.5L
• Volkswagen | CC | 2009~2017 | 2.0L/3.6L
• Volkswagen | Eos | 2007~2016 | 2.0L/3.2L
• Volkswagen | GTI | 2010~2014 | 2.0L
• Volkswagen | Golf | 2010~2013 | 2.0L/2.5L
• Volkswagen | Golf City | 2010 | 2.0L
• Volkswagen | Golf R | 2012~2013 | 2.0L
• Volkswagen | Jetta | 2005~2018 | 1.4L/1.8L/1.9L/2.0L/2.5L
• Volkswagen | Jetta City | 2007~2009 | 2.0L
• Volkswagen | Passat | 2006~2010/2012~2022 | 1.8L/2.0L/2.5L/3.6L
• Volkswagen | Passat CC | 2009~2010 | 2.0L/3.6L
• Volkswagen | R32 | 2008 | 3.2L
• Volkswagen | Rabbit | 2006~2009 | 2.5L
• Volkswagen | Tiguan | 2009~2017 | 2.0L
• Volkswagen | Tiguan Limited | 2017~2018 | 2.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• include: 1 X wheel bearing
• Product Material: steel
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5 Bolts
• Flange Bolt Hole Quantity: 4
• Number of Splines: 36
• Flange Shape: Modified
• Wheel Stud Size: M14 x 1.5
• Flange Bolt Size: M12 x 1.5
• Weight: 2.98kg
• Bolt Circle Diameter: 112MM
• Brake Pilot Diameter: 65MM
• Flange Diameter: 136.4MM
• Flange Offset: 48MM
• Hub Pilot Diameter: 85MM
• Wheel Pilot Diameter: 57MM
• Other Part Number: 1K0407621C, 1K0407621F, 1K0407621G, 1T0498621, 3C0498621,
• Replaces dealer part numbers: 513253,713253, WA513253,29513253

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
