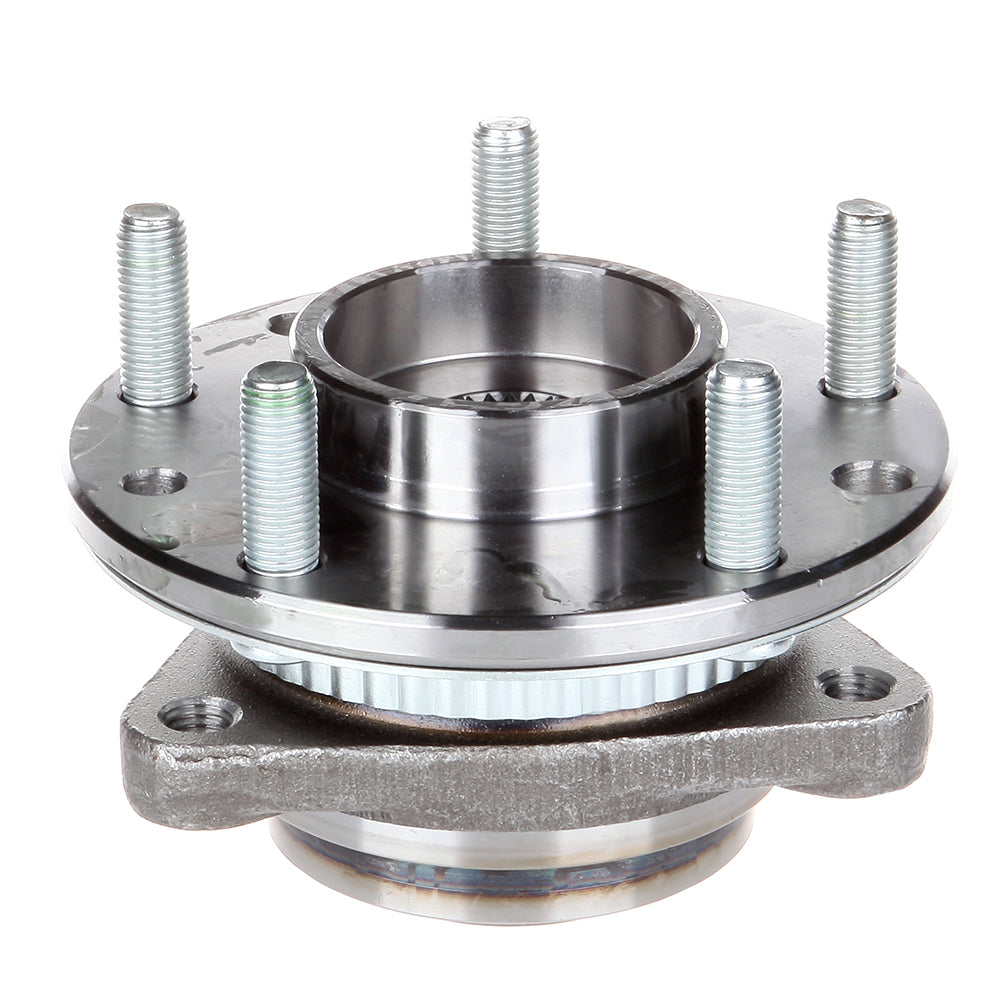

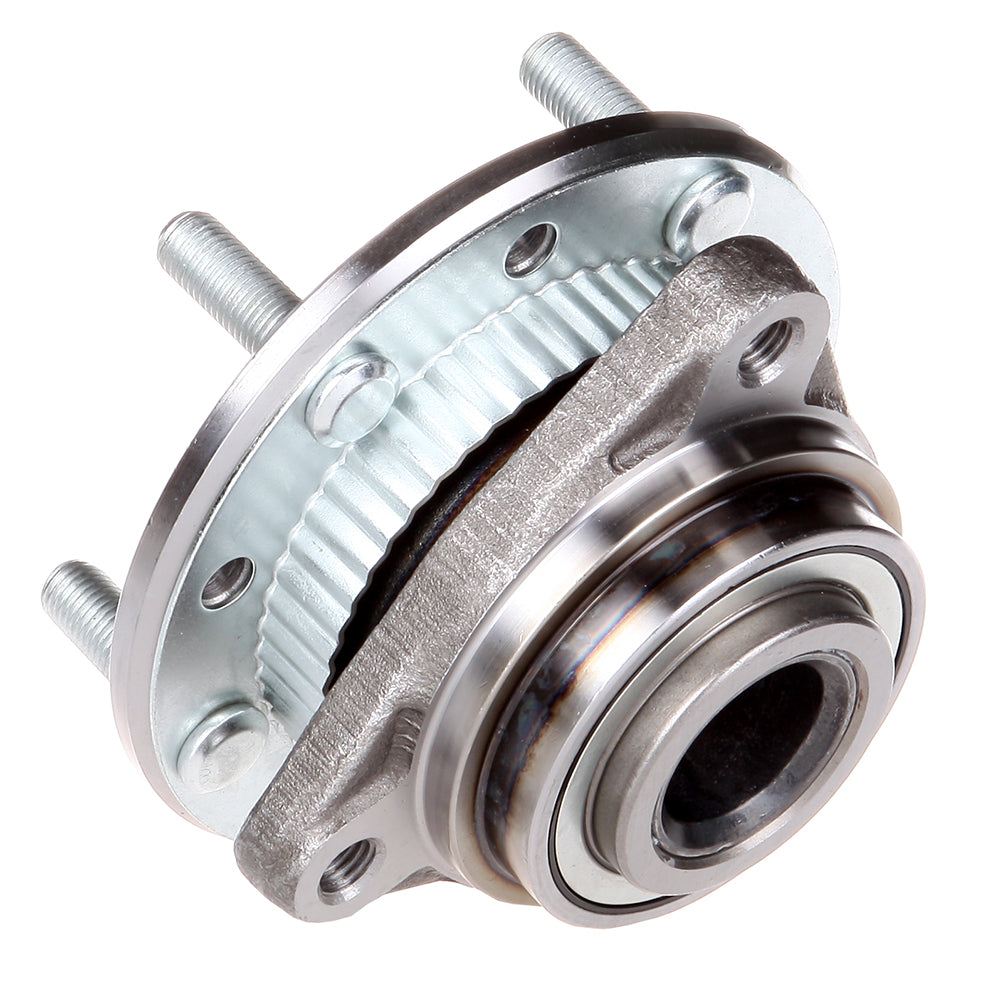

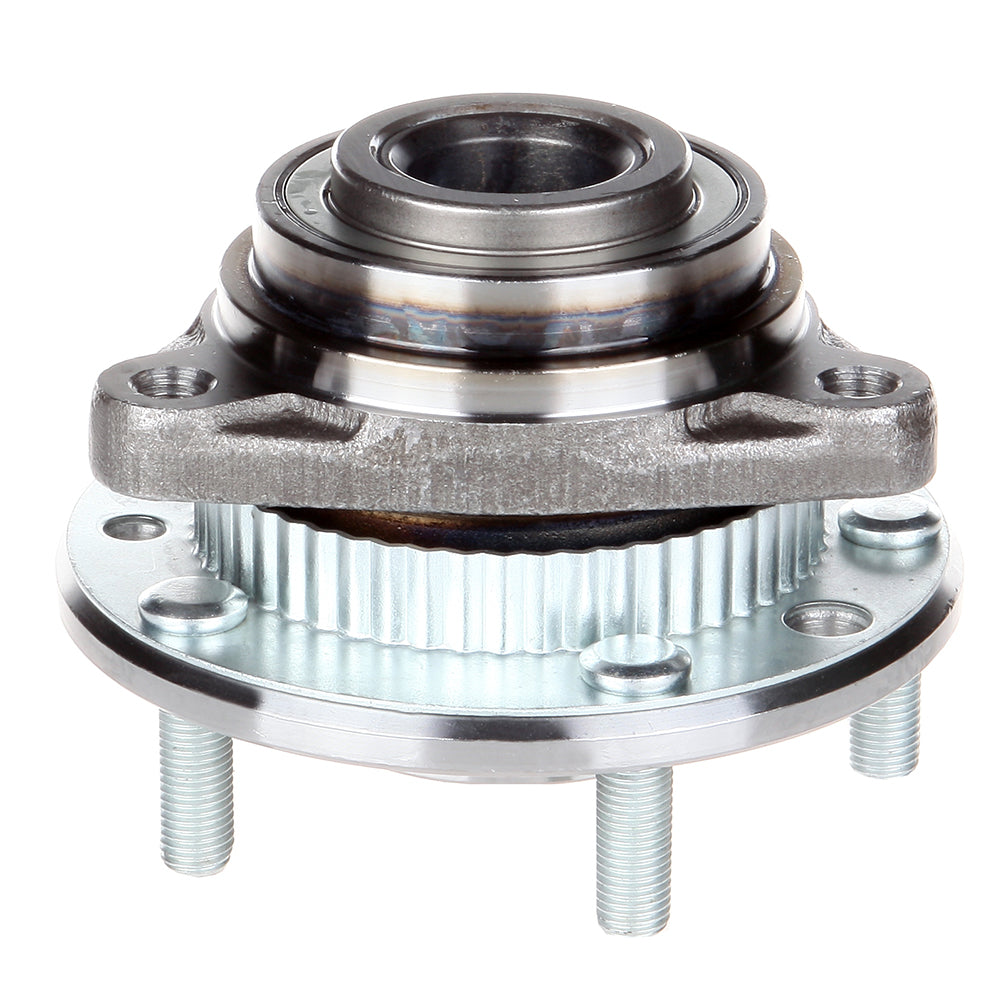

Wheel Hub & Bearing Assembly For 1995-1997 Chevrolet Blazer GMC Jimmy

Fitment

• Chevrolet | Blazer | 1995~1997 | 4.3L
• Chevrolet | S10 | 1994~1997 | 2.2L/4.3L
• Chevrolet | S10 Blazer | 1991~1994 | 4.3L
• GMC | Jimmy | 1992~1997 | 4.3L
• GMC | S15 Jimmy | 1991 | 4.3L
• GMC | Sonoma | 1994~1997 | 2.2L/4.3L
• GMC | Syclone | 1991 | 4.3L
• GMC | Typhoon | 1992~1993 | 4.3L
• Oldsmobile | Bravada | 1991~1994/1996~1997 | 4.3L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 27
• Bolt Circle Diameter: 4.7 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.7534 In
• Flange Diameter: 5.64 In
• Flange Shape: Modified Triangle
• Flange Offset: 1.83 In
• Hub Pilot Diameter: 3.16 In
• Other Part Numbers: 7466964, 7470012, 7470013, 7470506
• Material: steel
• Weight: 18LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513061,7466964, 7470012, 7470013, 7470506,29513061

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

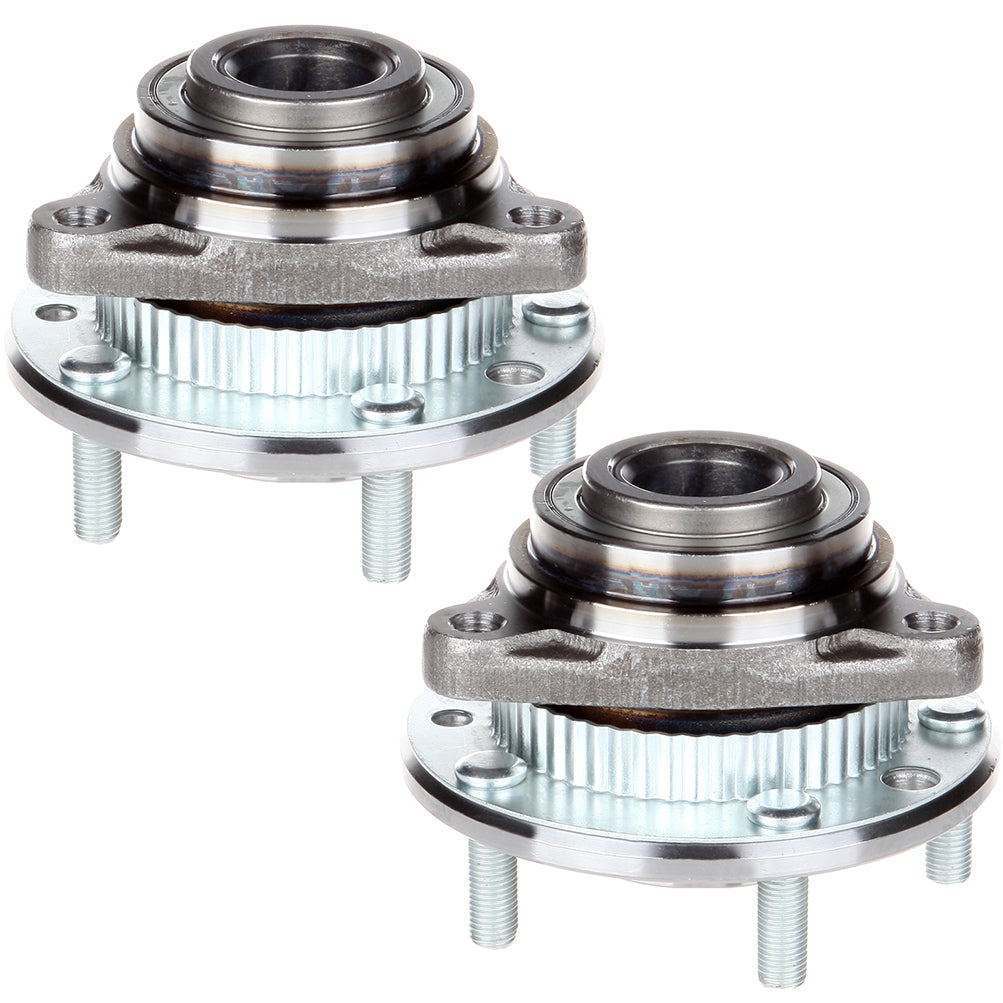

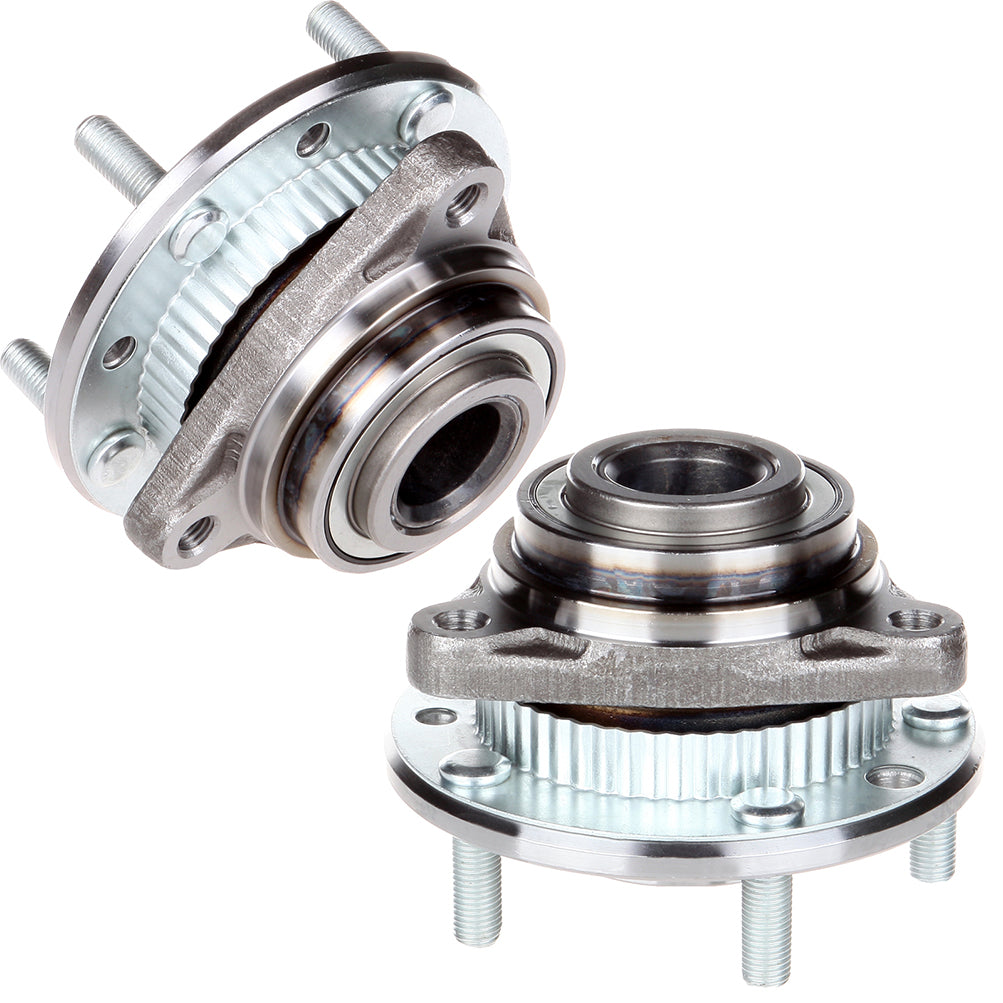

Include

2 Pcs wheel hub bearing
