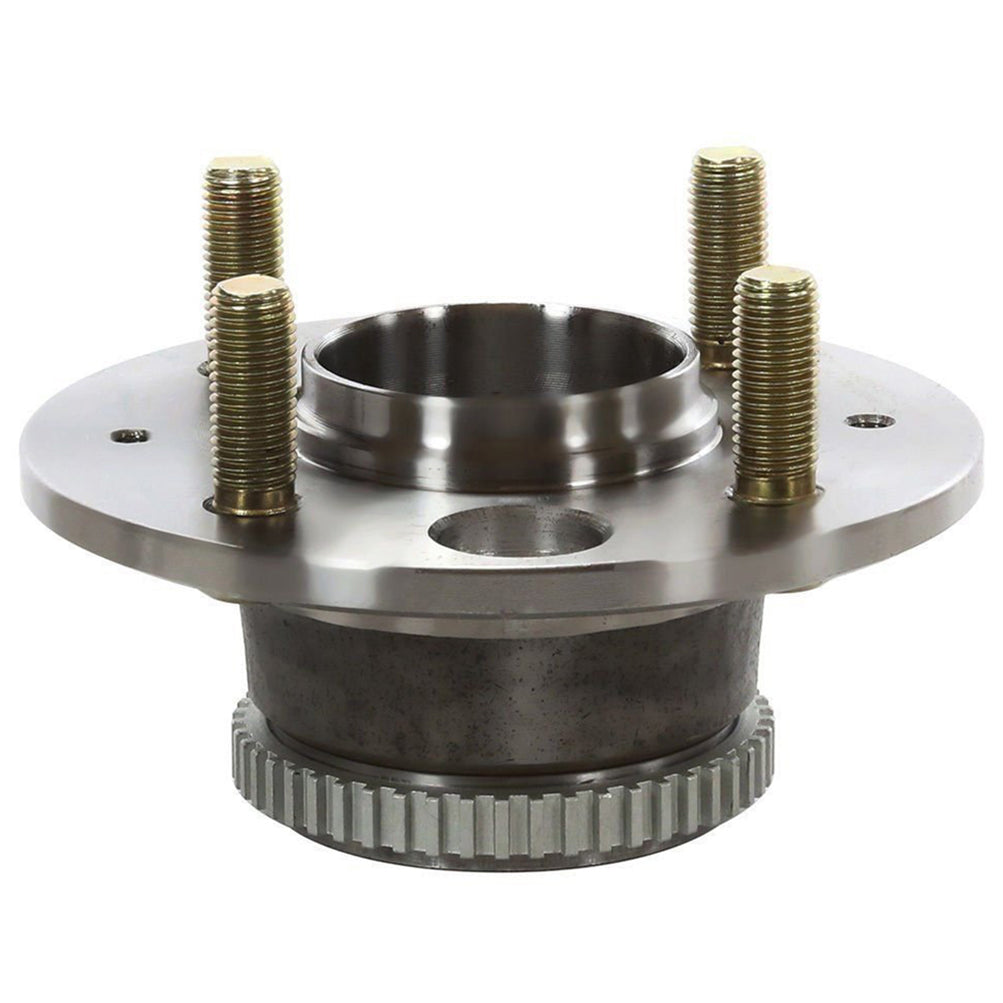

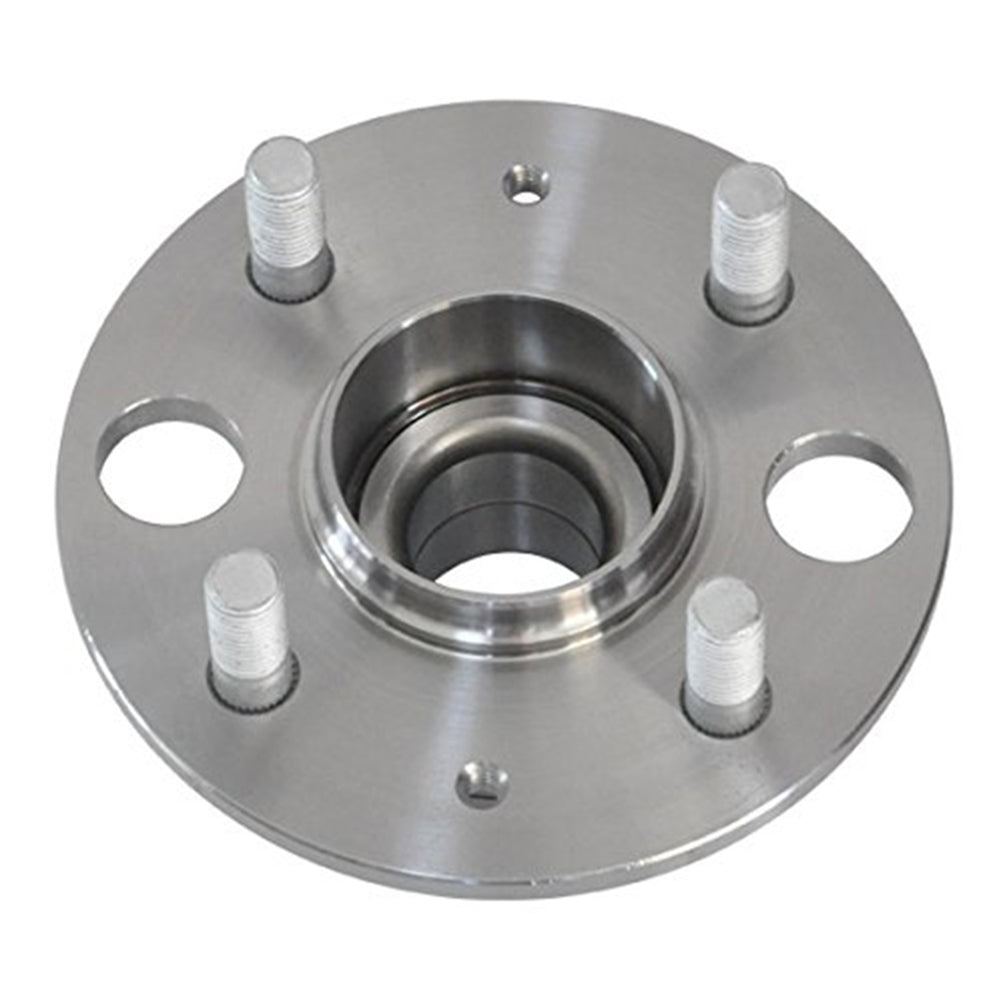

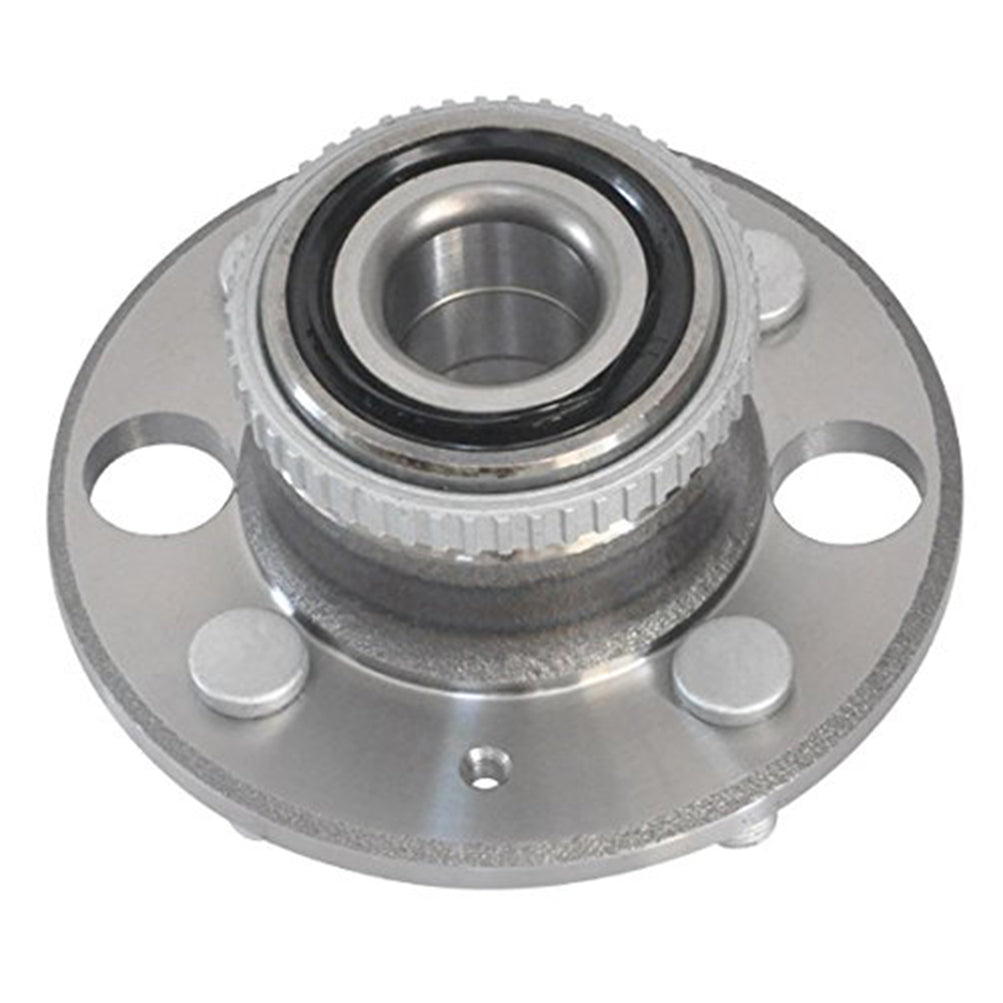

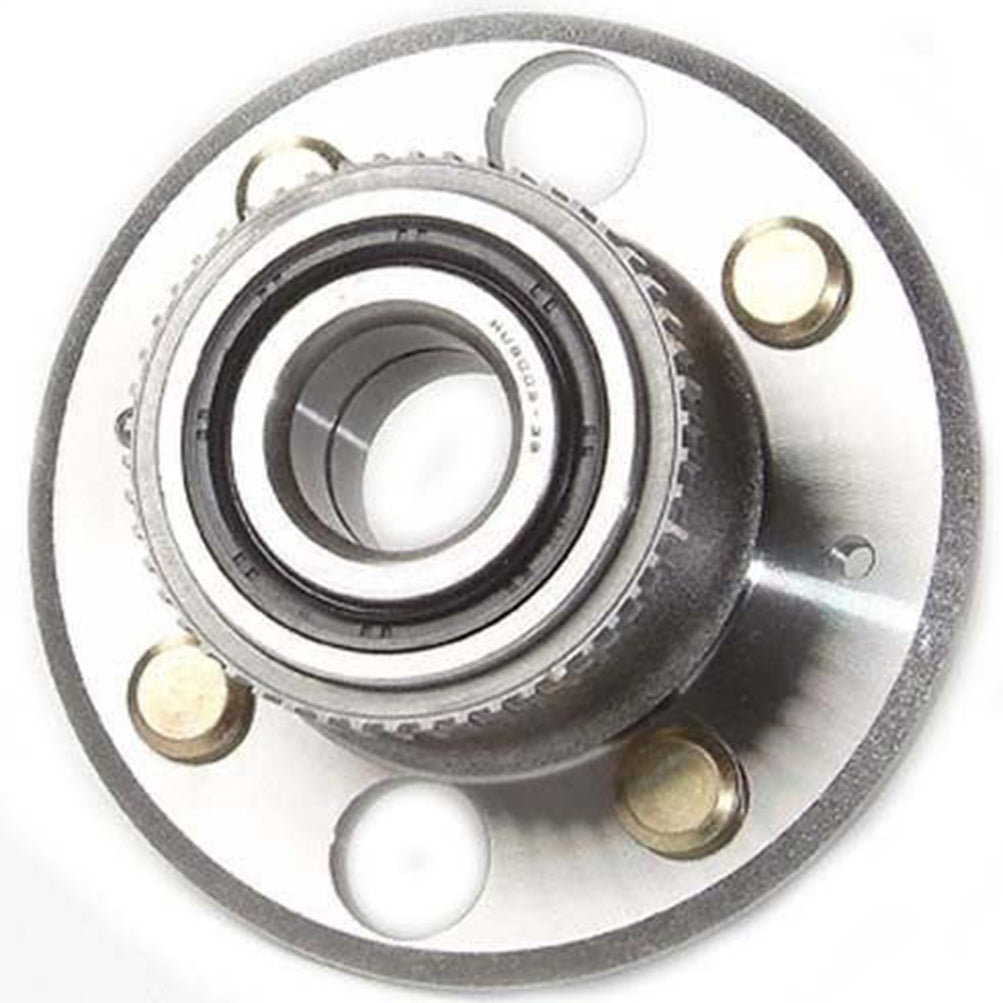

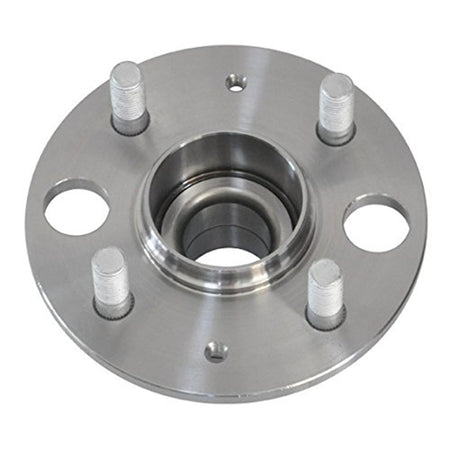

Wheel Hub & Bearing Assembly For 90-01 Acura Integra 92-95 99-00 Honda Civic

Fitment

• Acura | Integra | 1990~2001 | 1.8L
• Honda | Civic | 1992~1995/1999~2000 | 1.5L/1.6L
• Honda | Civic del Sol | 1995~1997 | 1.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Packing: 1 Pcs wheel bearings & hub
• Product Material: steel
• Bolt Quantity: 4
• Wheel Stud Size: M12 x 1.5
• Weight: 4LB
• Flange Offset: 2.17In.
• Flange Diameter: 5.35In.
• Bolt Circle Diameter: 3.94In.
• Brake Pilot Diameter: 2.4In.
• Hub Pilot Diameter: 2.46In.
• Wheel Pilot Diameter: 2.2In.
• Other Part Number: 42200SR3A52, 42200SR3A53, 42200ST7C51
• Material: steel
• Weight: 4LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513105,42200SR3A52, 42200SR3A53, 42200ST7C51,29513105

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
