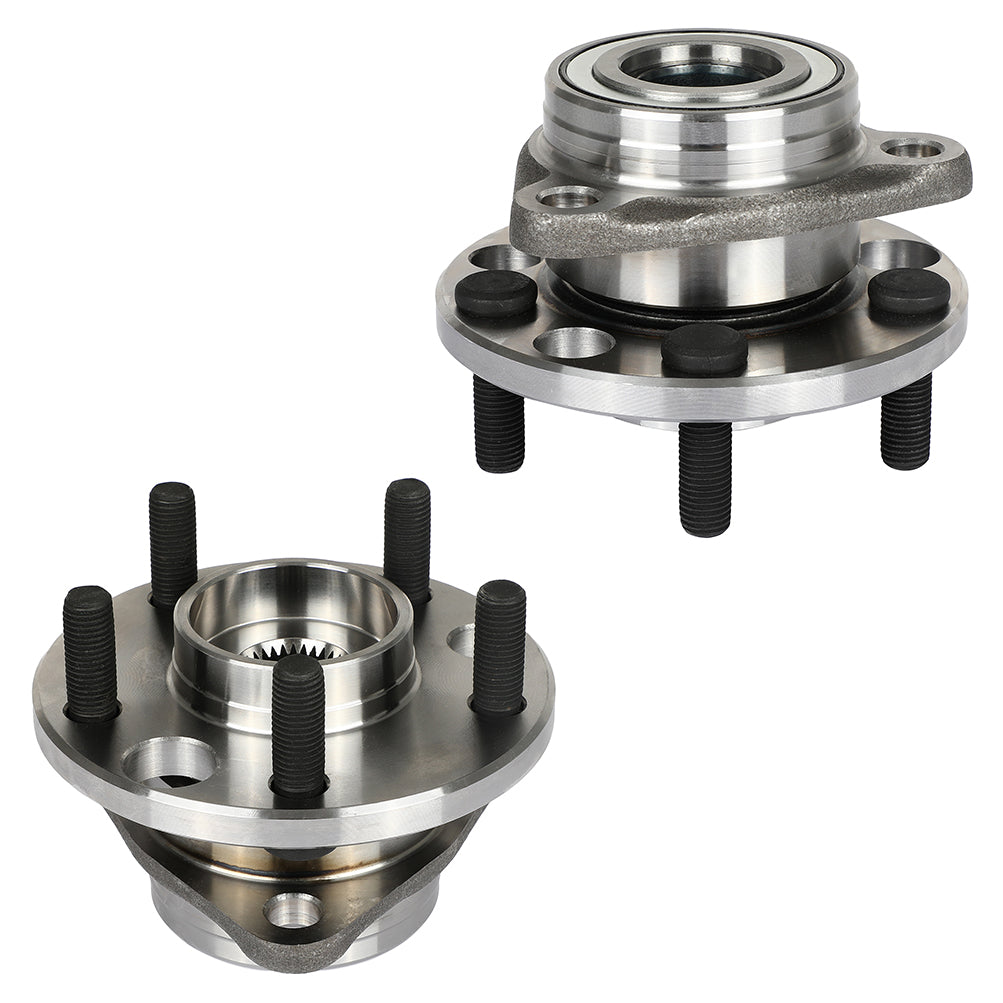

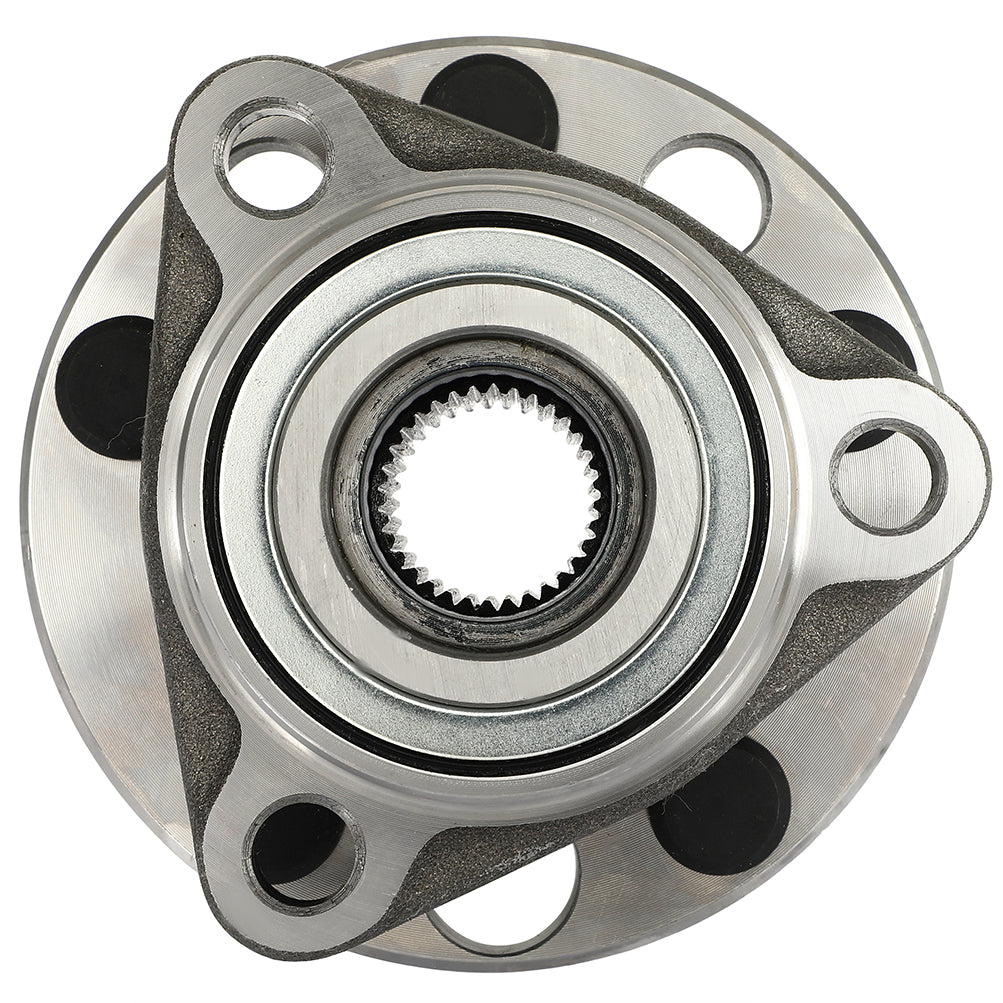

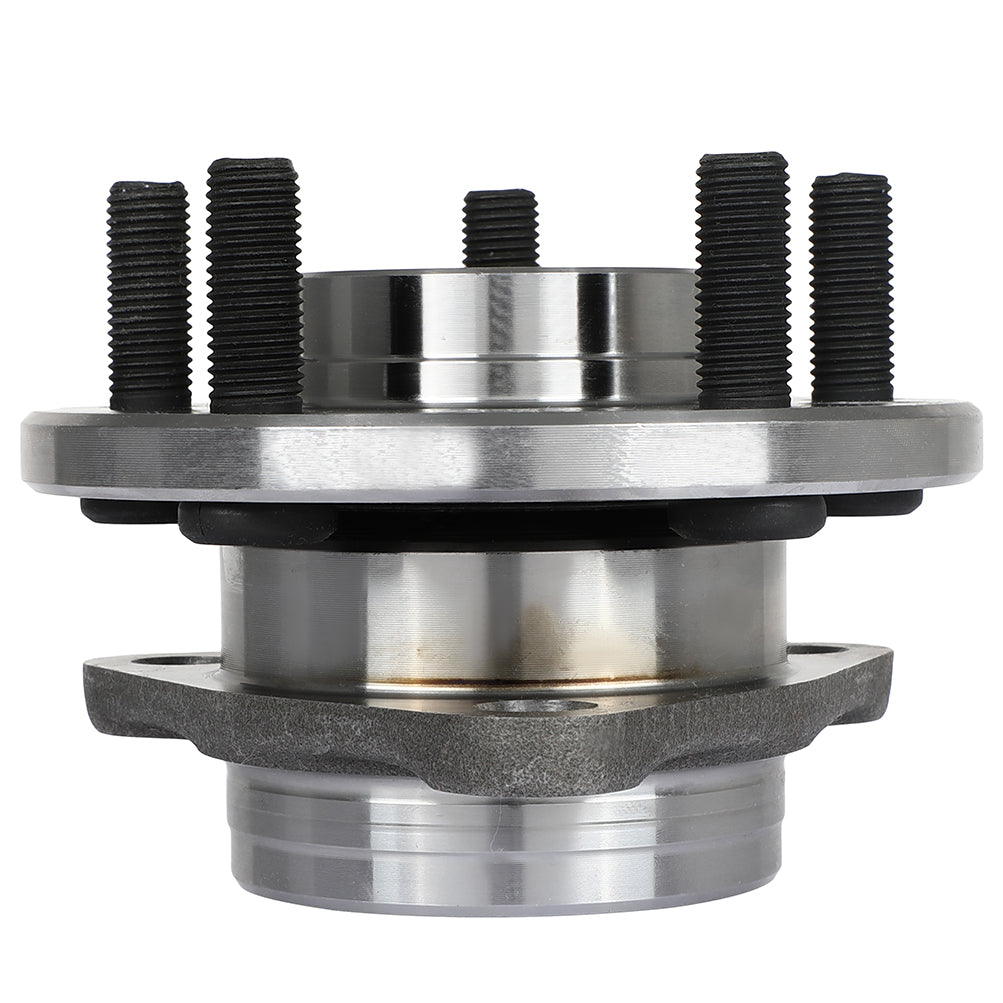

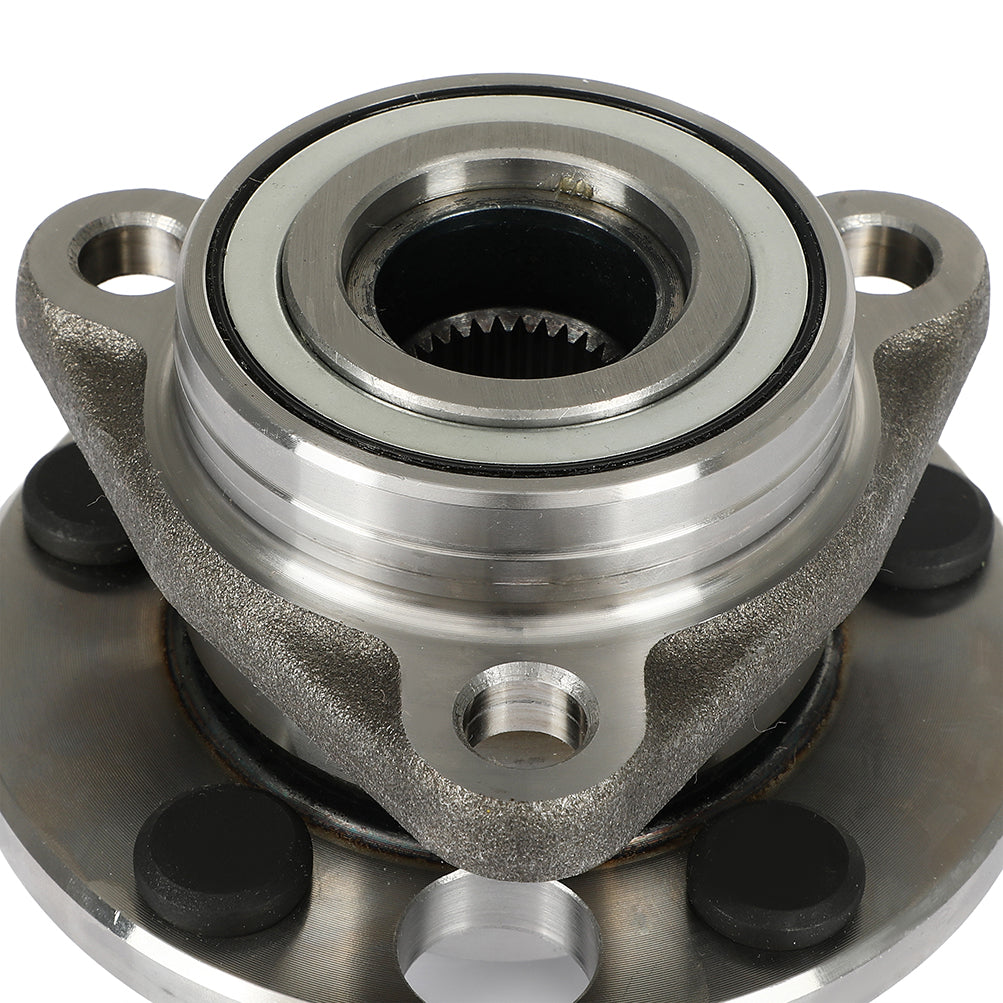

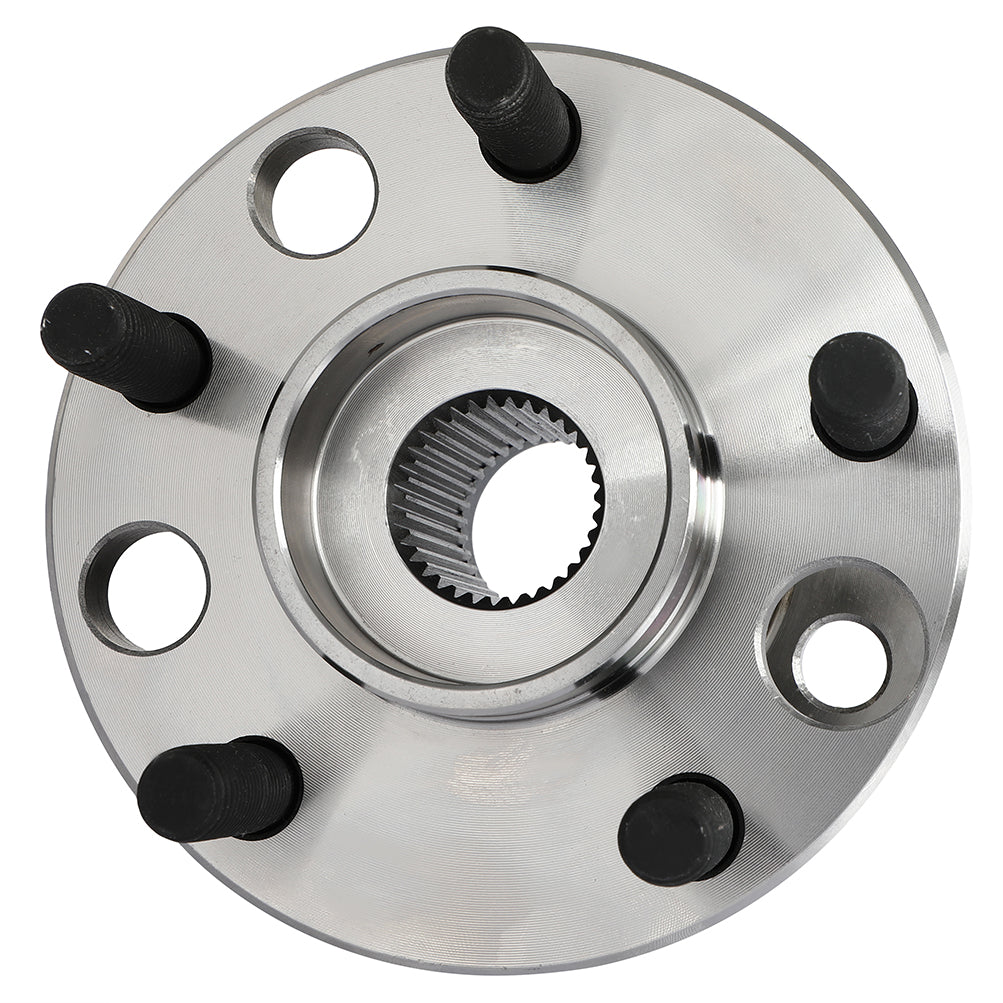

Wheel Hub Bearing For 90-98 Buick Skylark 90-05 Chevrolet Cavalier

Fitment

• Buick | Skyhawk | 1984~1989 | 1.8L/2.0L
• Buick | Skylark | 1985~1998 | 2.3L/2.4L/2.5L/2.8L/3.0L/3.1L/3.3L
• Buick | Somerset | 1986~1987 | 2.5L/3.0L
• Buick | Somerset Regal | 1985 | 2.5L/3.0L
• Cadillac | Cimarron | 1984~1988 | 2.0L/2.8L
• Chevrolet | Beretta | 1987~1996 | 2.0L/2.2L/2.3L/2.8L/3.1L
• Chevrolet | Cavalier | 1984~2005 | 2.0L/2.2L/2.3L/2.4L/2.8L/3.1L
• Chevrolet | Corsica | 1987~1996 | 2.0L/2.2L/2.8L/3.1L
• Oldsmobile | Achieva | 1992~1998 | 2.3L/2.4L/3.1L/3.3L
• Oldsmobile | Calais | 1985~1987 | 2.3L/2.5L/3.0L
• Oldsmobile | Cutlass Calais | 1988~1991 | 2.3L/2.5L/3.0L/3.3L
• Oldsmobile | Firenza | 1984~1988 | 1.8L/2.0L/2.8L
• Pontiac | Grand Am | 1985~1998 | 2.0L/2.3L/2.4L/2.5L/3.0L/3.1L/3.3L
• Pontiac | J2000 Sunbird | 1984~1985 | 1.8L/2.0L
• Pontiac | Sunbird | 1986~1994 | 1.8L/2.0L/3.1L
• Pontiac | Sunfire | 1995~2005 | 2.2L/2.3L/2.4L
• Pontiac | Tempest | 1987~1991 | 2.0L/3.1L

Product Specifics

• Placement: Driver Side+Passenger Side+Front
• ABS Sensor: No ABS
• Packing Include: (2)wheel bearings
• Number of Splines: 33
• Warranty: 12 months
• Material: Steel
• Flange Bolt Hole Quantity: 3
• Bolt Quantity: 5 Bolts
• Flange Shape: Triangle
• Weight: 12LB
• Bolt Circle Diameter: 3.94In.
• Brake Pilot Diameter: 2.3In.
• Flange Diameter: 4.92In.
• Flange Offset: 1.74In.
• Hub Pilot Diameter: 2.89In.
• Wheel Pilot Diameter: 2.24In.
• Wheel Stud Size: M12 x 1.5
• Alternate/OEM Part Number(s): WA513017
• Replaces dealer part numbers: 513017,713017,29513017

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

2 Pcs wheel hub bearing
