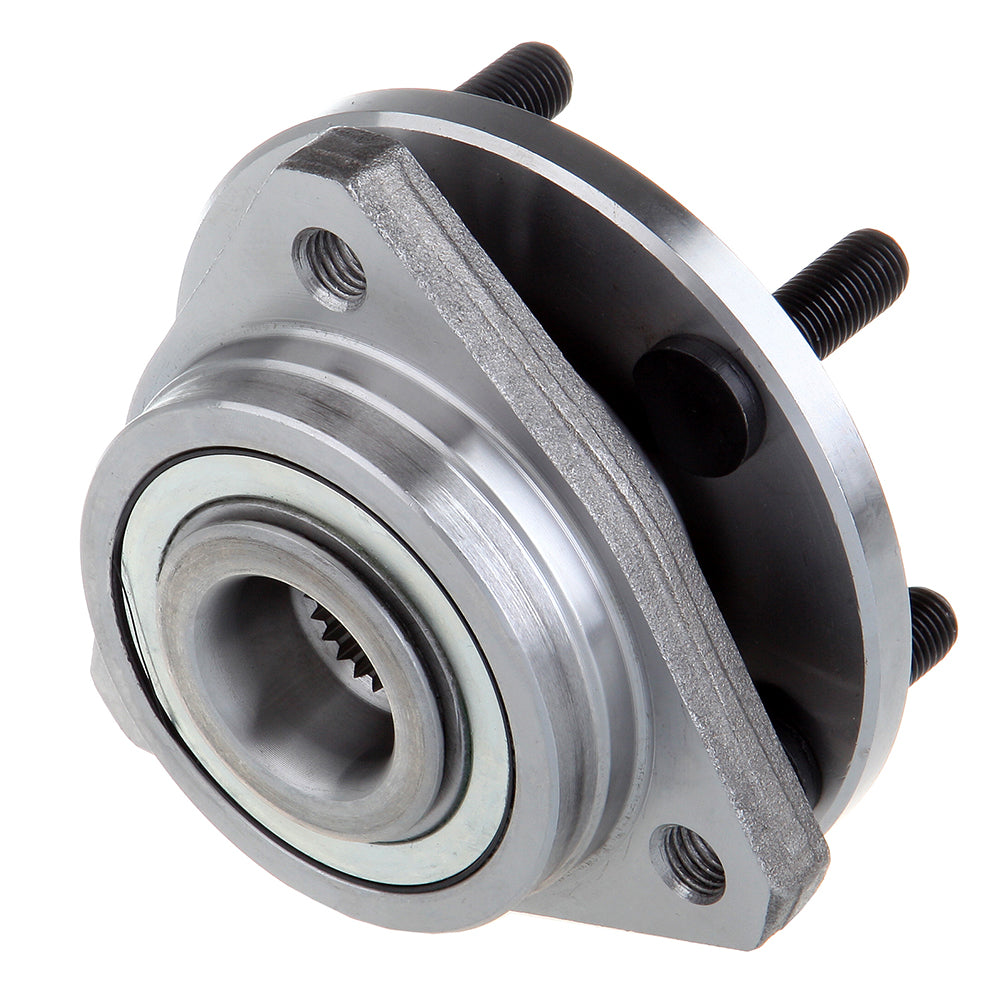

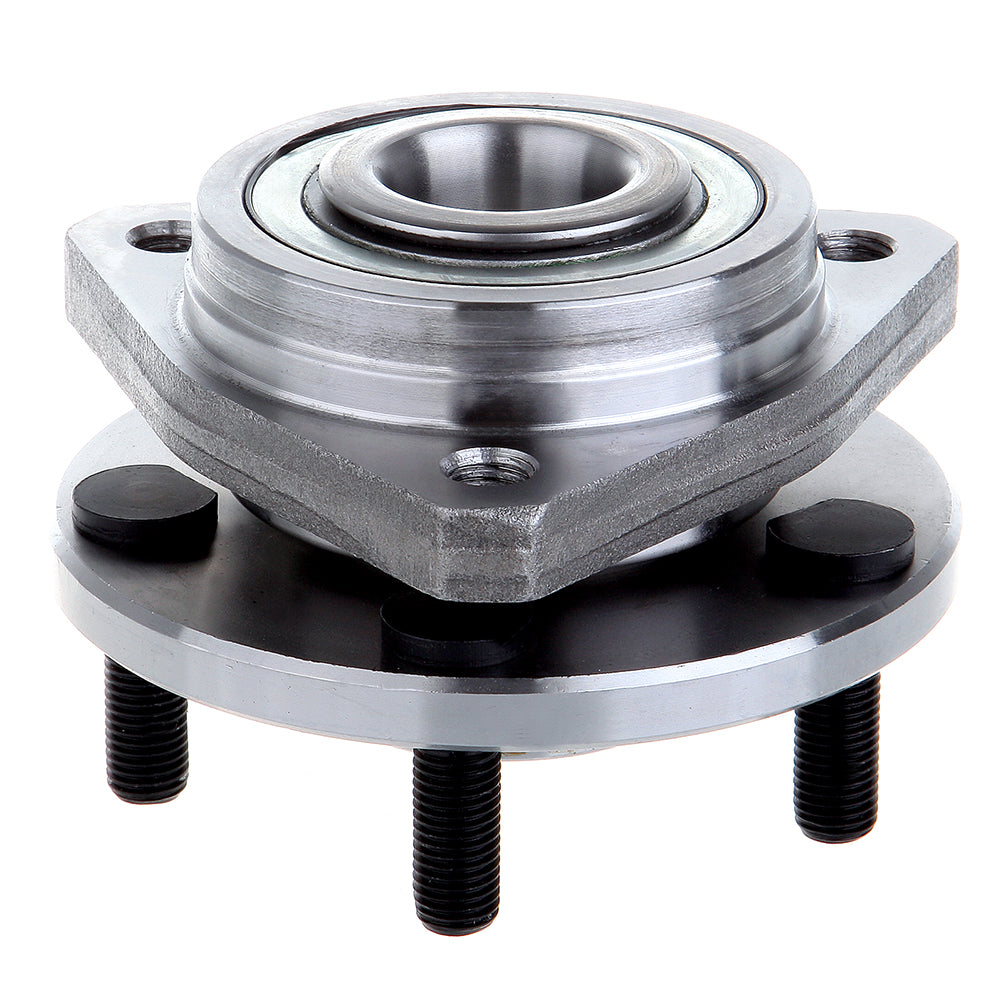

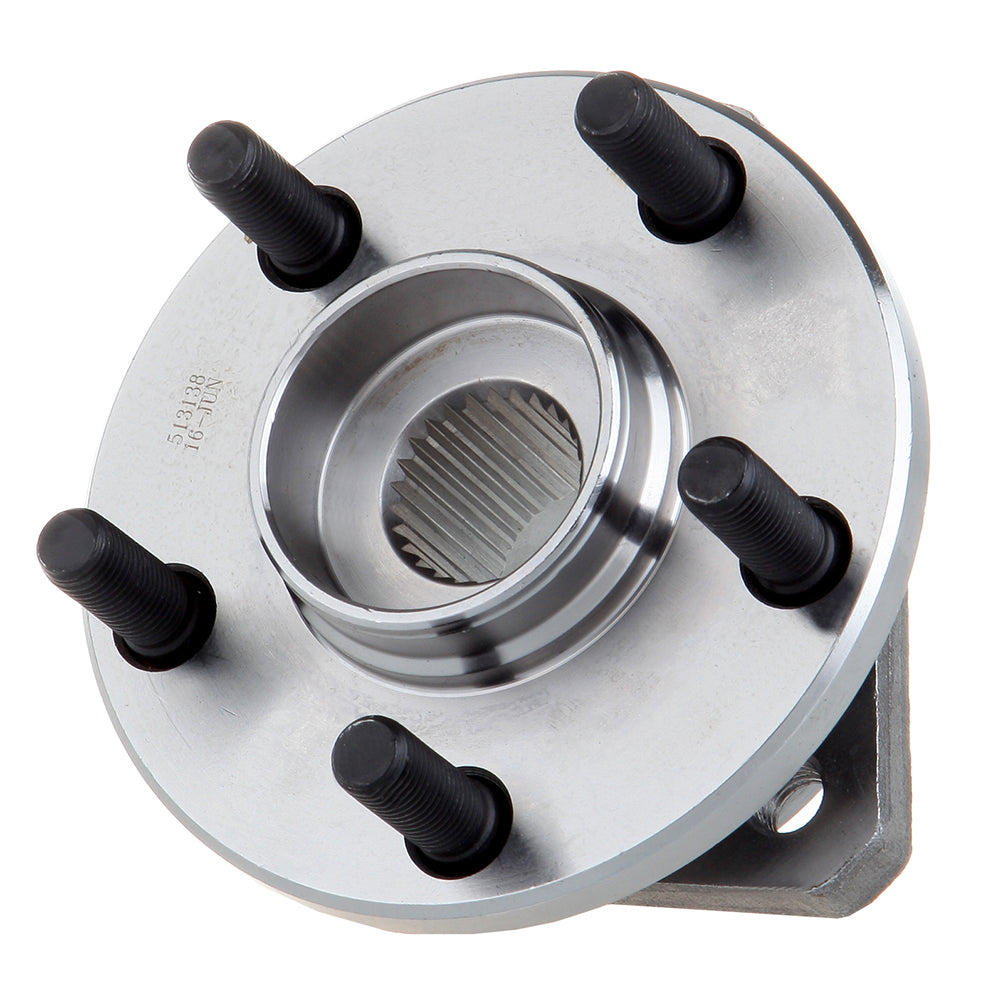

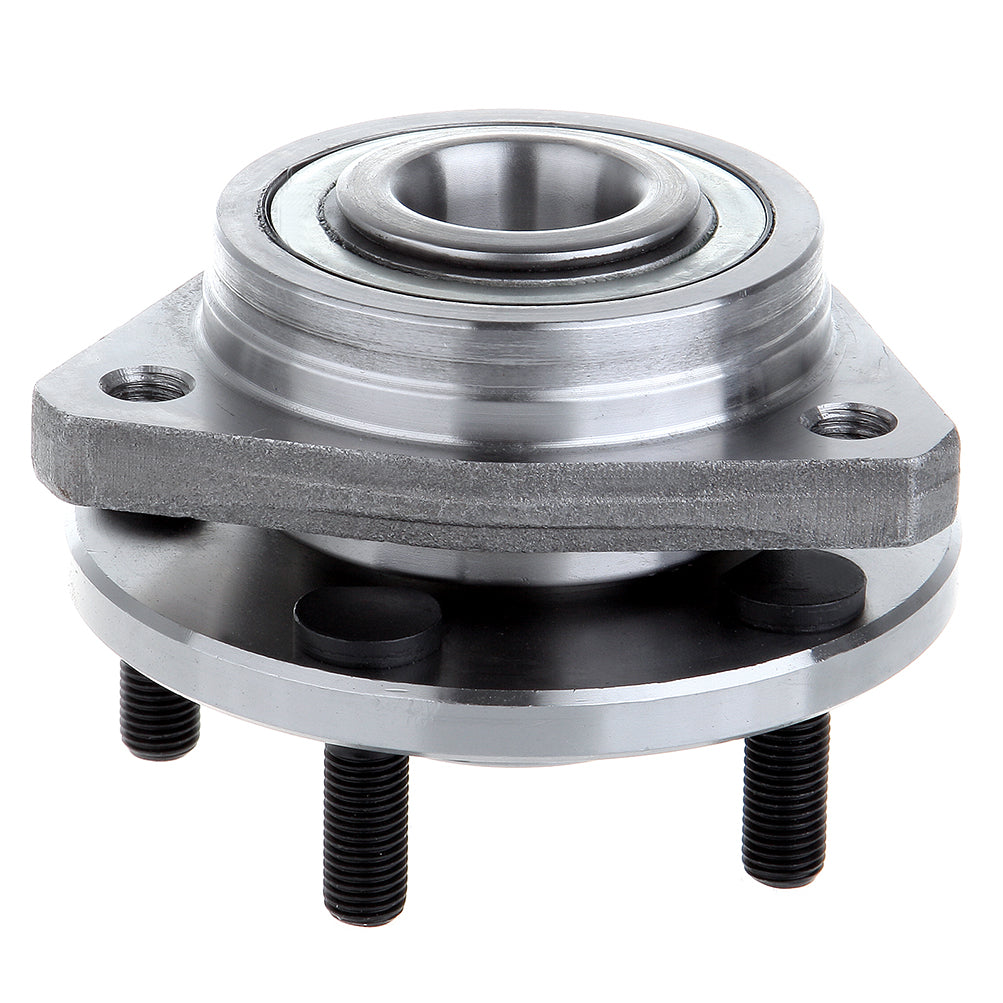

Wheel Hub & Bearing For 95-06 Dodge Stratus 96-06 Chrysler Sebring

Fitment

• Chrysler | Cirrus | 1995~2000 | 2.0L/2.4L/2.5L
• Chrysler | Sebring | 1996~2006 | 2.4L/2.5L/2.7L/3.0L
• Dodge | Stratus | 1995~2006 | 2.0L/2.4L/2.5L/2.7L/3.0L
• Plymouth | Breeze | 1996~2000 | 2.0L/2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• Warranty: 12 months
• Material: Steel
• Flange Shape: Triangle
• Qty: 1 x wheel hub bearing
• Flange Bolt Hole Quantity: 3
• Bolt Quantity: 5
• Weight: 3kg
• Spline Quantity: 26
• Flange Offset: 37.4MM
• Flange Diameter: 127.8MM
• Bolt Circle Diameter: 100MM
• Brake Pilot Diameter: 60MM
• Hub Pilot Diameter: 85MM
• Wheel Pilot Diameter: 56.8MM
• Other Part Number: 04578144AB, 04593462AA, 4578144AA, 4578144AB, 4593462, 4593462AA,
• Weight: 7LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513121713121BR930548KBR930548KPBR930548KWB13187WB13199713179513187BR930149WB13179

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
